RIDEN RD6012 DC Power Supply

Description

Specifications:
Material: ABS ，Color: white
Display screen: 2.4 inch color LCD display
Output voltage current range: 0-44V 1-18A ,44-60V 0-(12-18.000A)(800W Max)

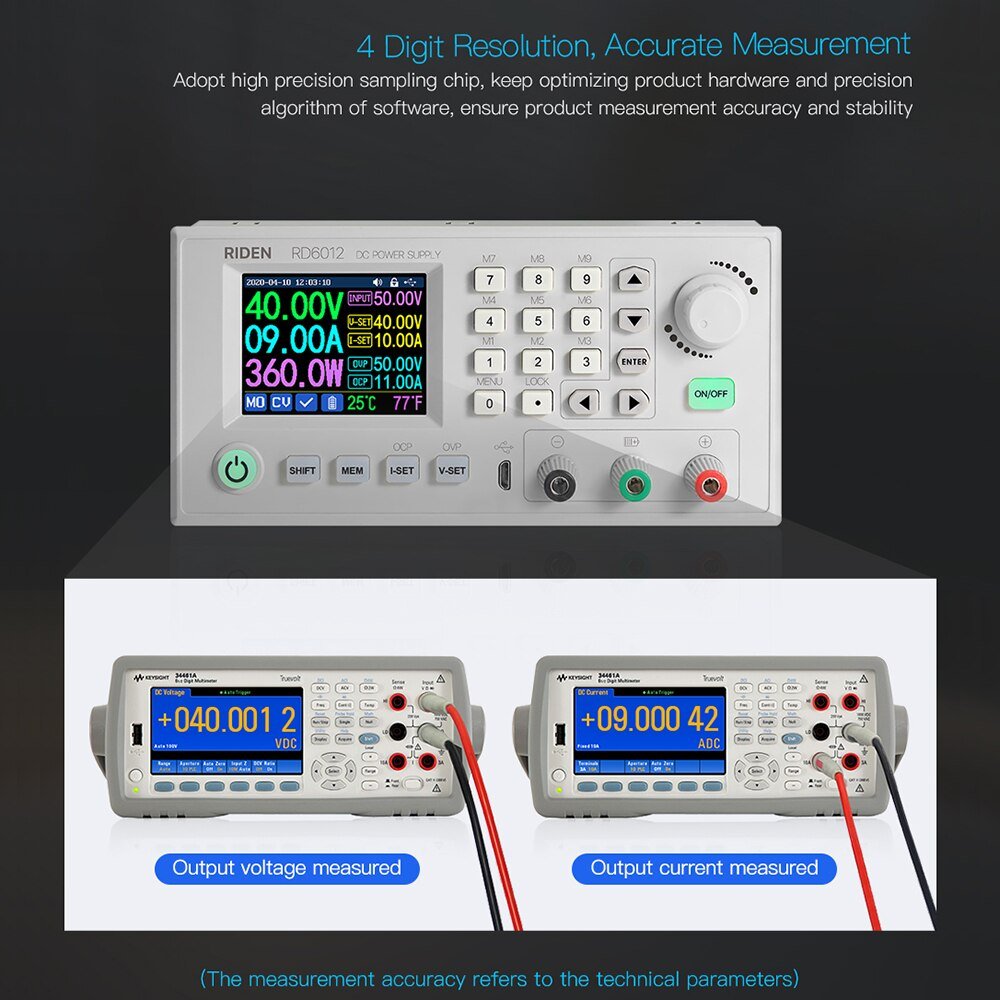

Output voltage current measurement resolution: 0.01V， 0.001A
Output power range: 0-800.0W

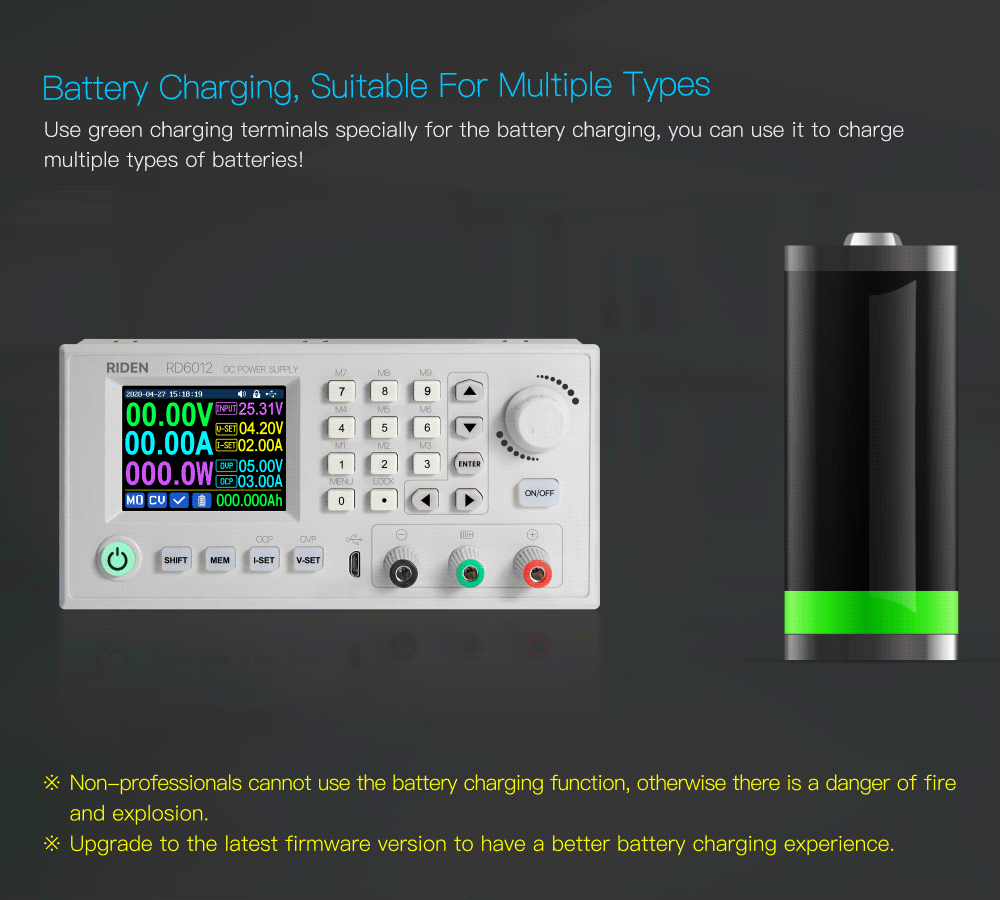

Battery voltage measurement resolution: 0.01V
Output voltage current accuracy: ±(0.3% 3 digits)， ±(0.5% 5 digits)
Battery voltage measurement accuracy: ±(0.5% 3 digits)
Output ripple typical: 100mV VPP
Constant voltage mode response time: 2ms(0.1A-5A load)
External sensor temperature detection range: -10℃~100℃/0℉~200℉
External sensor temperature detection accuracy: ± 3℃/ ± 6℉
Constant voltage current mode load adjustment rate : ±(0.1% 2 digits)，±(0.1% 3 digits)
Capacity measurement measurement range: 0-9999.99Ah， 0-9999.99Wh
Screen brightness setting: 0-5 level total 6 levels
Capacity and energy statistical error: ±2%
Working mode: buck mode voltage drop >1V and >10%
Working temperature range: -10℃~40℃
Power supply size: 330 * 170 * 95mm / 13.05 * 6.7 * 3.75in
