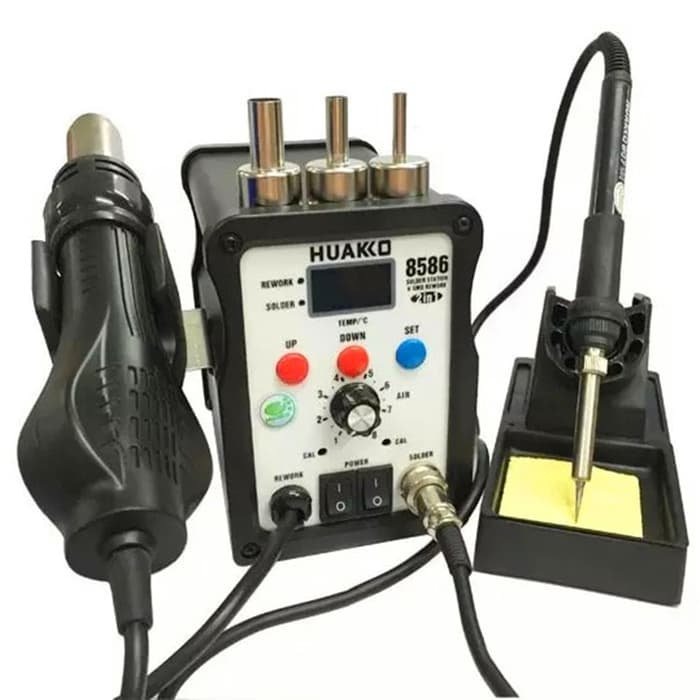

Huakko 8586 Blower+Soldering Station

Description

Product Features:
It consists of welding and hot air welding and welding stages;
The core of the whole machine is controlled by a single chip microcomputer chip, which ensures that the hot air table temperature and the soldering pad are accurate and stable, but not a simple combination of the two devices;
Clear digital display of working temperature and current working status;
Numerical control knob to adjust the hot air temperature and welding temperature continuously to meet the needs of different workplaces;
Intuitive error indication function.

Technical index:

Whole machine:
Rated voltage: 220V AC   10% 50Hz
Whole power: 750W (Max)
Work environment: 0-40
Relative humidity: <80%
Storage temperature: -80 C -20 C

Hot explosion
Operating voltage: 220V AC   10% 50Hz
Output power: 700W
Temperature range: 100-500
Temperature stability:   5
Gas flow speed: 120L / min (max)

Welding station
Working voltage: AC 26V 50Hz
Output power: 50W
Temperature range: 200-480
Temperature stability:   2 C (static)
Welding nozzle to ground impedance: <2
Welding nozzle to ground voltage: 3mV
